How To Repair Subaru Crosstrek Windshield Washer Nozzle

Subaru Crosstrek Service Manual: Removal

WIPER AND WASHER SYSTEMS > Front end Washer Nozzle and Hose

REMOVAL

ane. NOZZLE - WINDSHIELD WASHER & HOSE

one. Remove the arm assembly - windshield wiper. Forepart Wiper Arm > REMOVAL">

2. Remove the cowl panel - side and the cowl panel assembly. Cowl Panel > REMOVAL">

CAUTION:

Before removing the cowl panel, apply an air blower and nylon brush to sweep gravel from the lower area of the forepart side of the drinking glass.

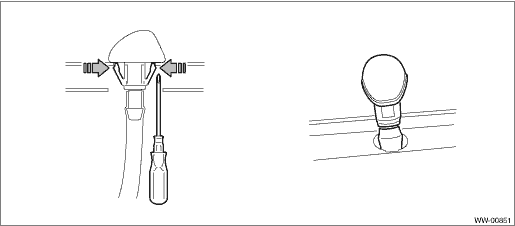

3. Remove the nozzle - windshield washer.

(i) Button the hook using a apartment tip screwdriver, etc.

(2) When the nozzle - windshield washer lifts upward, pull out the nozzle - windshield washer using a prune remover, etc.

(3) Disconnect the hose - windshield washer, and remove the nozzle - windshield washer.

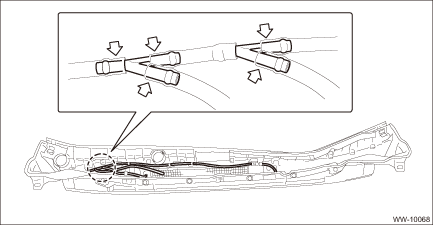

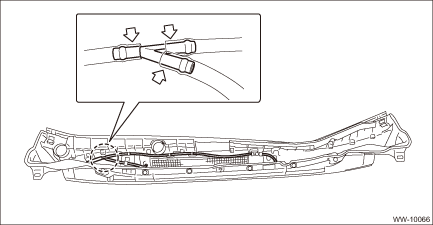

4. Disconnect the hose - windshield washer as necessary.

• Models without EyeSight

• Models with EyeSight

2. NOZZLE - WIPER ARM WASHER & HOSE (MODEL WITH EyeSight)

CAUTION:

Do not remove the nozzle - wiper arm washer from the arm associates - windshield wiper assistor.

If nozzle replacement is required, replace the arm assembly - windshield wiper assistor as a unit.

1. Remove the arm assembly - windshield wiper. Forepart Wiper Arm > REMOVAL">

2. Remove the cowl panel - side and the cowl panel assembly. Cowl Panel > REMOVAL">

CAUTION:

Earlier removing the cowl panel, use an air blower and nylon brush to sweep gravel from the lower surface area of the front side of the drinking glass.

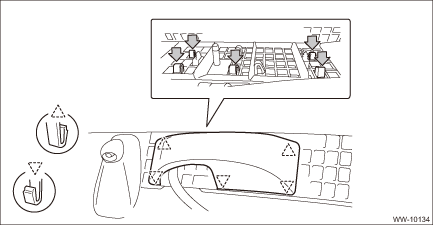

3. Release the claws, and remove the encompass - joint from cowl panel assembly.

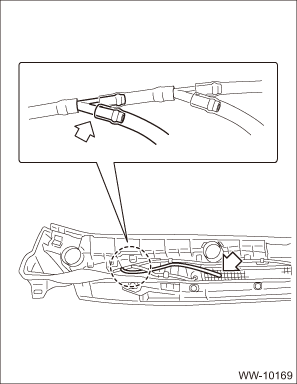

iv. Remove the hose - wiper arm washer.

Adjustment

WIPER AND WASHER SYSTEMS > Front Washer Nozzle and HoseADJUSTMENT1. NOZZLE - WINDSHIELD WASHER1. Turn the wiper switch to OFF position.ii. While the vehicle is at a standstill, insert a precision sc ...

Inspection

WIPER AND WASHER SYSTEMS > Front Washer Nozzle and HoseINSPECTION• Brand sure the nozzle - windshield washer and the hose - windshield washer are not clogged.• Brand certain the hose - winds ...
